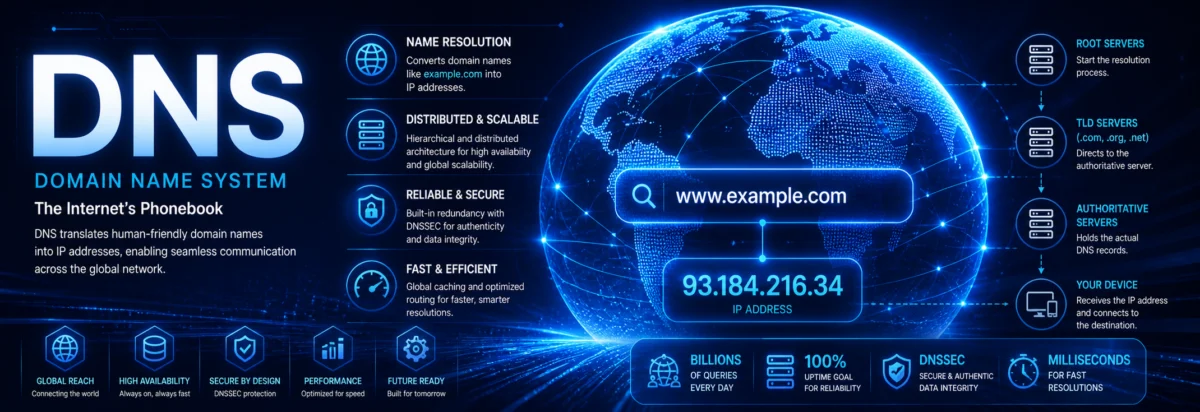

DNS (Domain Name System)

1. The Core Problem DNS Solves

Humans use:

• google.com

Networks use:

• 142.250.74.14

DNS exists to bridge that gap:

Translate human-readable names into IP addresses (and more).

But that’s only the surface.

DNS is actually:

• A distributed database
• A hierarchical naming system
• A critical control plane of the internet

2. DNS Architecture — Hierarchical Design

DNS is not centralized. It is hierarchical and distributed.

Structure:

. (root)
├── com
│   ├── google.com
│   └── example.com
├── org
└── net

Visual Hierarchy

Levels Explained

1. Root servers
2. TLD servers (.com, .org, .net)
3. Authoritative servers (domain owners)

Example organizations involved:

• ICANN
• Verisign

3. DNS Resolution — How a Query Actually Works

This is the most important part.

Two types of queries:

• Recursive
• Iterative

Step-by-step resolution

Client asks: example.com

1. Client → Resolver (recursive)
2. Resolver → Root server
3. Root → TLD server (.com)
4. TLD → Authoritative server
5. Authoritative → returns IP
6. Resolver → client

Visual Flow

4. DNS Components

1. Stub Resolver

• On your device
• Sends queries

2. Recursive Resolver

• Usually ISP or public service
• Does full lookup

Examples:

• Google Public DNS
• Cloudflare DNS

3. Authoritative Name Server

• Holds actual domain records

5. DNS Records (Core Knowledge)

DNS is not just A records.

Most important types:

Example

example.com → A → 93.184.216.34

6. Forward vs Reverse DNS

Forward DNS

domain → IP

Reverse DNS

IP → domain

Uses special domain:

• in-addr.arpa (IPv4)
• ip6.arpa (IPv6)

7. DNS Transport Protocol

DNS uses:

• UDP port 53 (default, fast)
• TCP port 53 (fallback, large responses)

8. Caching — Performance Backbone

DNS relies heavily on caching.

TTL (Time To Live)

Example:

TTL = 3600 seconds

Benefits:

• Reduces latency
• Reduces load

9. DNS Zones and Delegation

A zone is a portion of the DNS namespace.

Zone file contains:

• Records
• SOA (Start of Authority)

Delegation Example

• .com delegates example.com
• Authoritative server manages it

10. DNS Load Balancing

DNS can distribute traffic:

example.com → multiple IPs

Used for:

• Load balancing
• Geo-routing

11. DNS Security

DNS was originally not secure.

Problems:

• Cache poisoning
• Spoofing

Solution: DNSSEC

Adds:

• Authentication
• Integrity

But:

• Not encryption

12. Modern DNS Enhancements

DNS over HTTPS (DoH)

• Encrypts DNS queries over HTTPS

DNS over TLS (DoT)

• Secure DNS channel

13. Real-World DNS Infrastructure

Large-scale systems use:

• Anycast routing
• Distributed global servers
• Redundant authoritative clusters

Example providers:

• Amazon Route 53
• Cloudflare

14. DNS and CDN (Critical Insight)

DNS is used for:

• Traffic steering
• Performance optimization

Example:

• User in Europe → European server
• User in Asia → Asian server

15. Common DNS Failures

You need to recognize these:

• Misconfigured NS records
• Wrong TTL values
• Cache inconsistency
• Propagation delays

16. DNS Propagation (Reality vs Myth)

DNS doesn’t “propagate” — caches expire.

Delay depends on:

• TTL
• Resolver behavior

17. Key Engineering Insights

If you want to operate at a high level:

• DNS is a distributed database, not just a lookup tool
• Caching strategy is critical
• DNS is part of your security surface
• Many outages are actually DNS failures

18. Final Summary

DNS is:

• A hierarchical, distributed naming system
• Responsible for translating names into IPs
• Built on recursive resolution and caching
• Essential to every internet service

Without DNS:

The internet is unusable for humans.
